Mix Use Controller





M24 Mix24 port Mix Control Module (G4) - DIN-Rail Mount (G4) - SB-MIX24-DN



4Ch Dimmer 1A, 20Ch Relay 2A with scene controller.Mannual Programming Enabled.

(Overload Protection) Good for Lightng Control, 50-60Hz. (Green operated supplied by 24VAC/12mA).
Cascadable, Upgradable Via USB Cable. 2-Way status update if manually overidden at Relay side. ((Built in: Added Motor control Double trow Function and Floor heating manual pairing Function)). (Warning: Higher Loads Require Adding of Contactors for Protection per channel Load. Dimmer Channels Require Fast Burning
Fuse Protection)

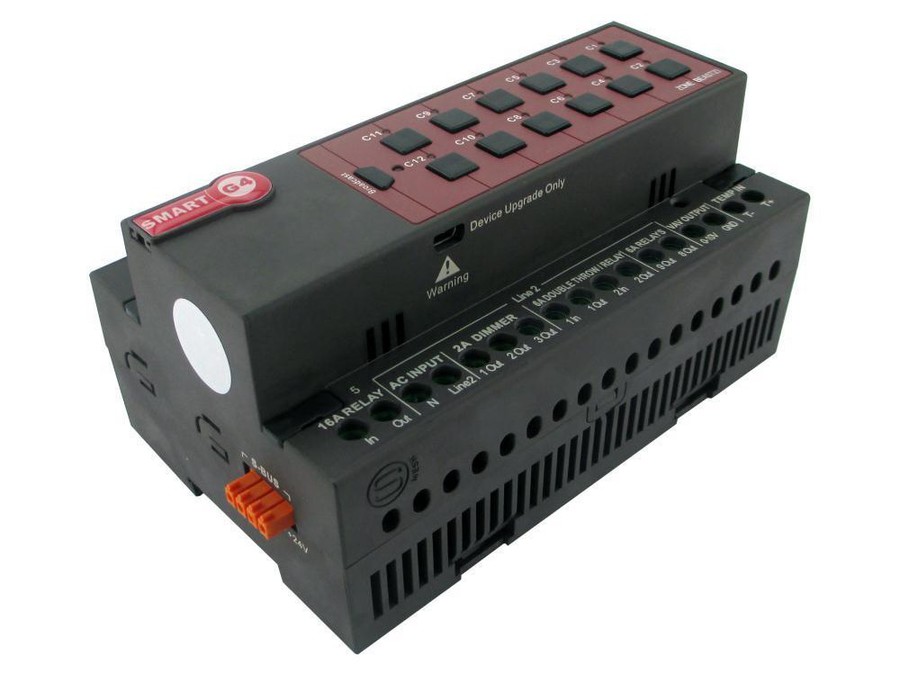

( Mix23 ) Zone-Beast 23 port Mix Control Module (G4) - SB-ZBeast23-DN



DIN-Rail Mount, Total 3Ch Dimming, and 18 Relays, 1 temp aux, and a 1 VAV 0-10V.

to be used as needed with easy assignment for following applications: lighting, dimming, hVAC, drapes and shutters, boilers or pump,
Exhaust fan, Sirens/Flasher, door bell and many more (3ch dimming Each 1Amp + 9ch Relay 2A Each + 1 Relay 16A for heavy Appliances), 1 temperature Sensor Input.

1 0-10v output + 1HVAC module with LMH, Cold, Heat, Fresh air, + 2Relay Switch over for Curtain Control (Warning: Higher AC Loads Require Adding of
Contactors for Protection per channel Load, Dimmer Channels Require 1A Fast Burning Fuse per channel)
