Relays ( Switching Controls )

12R Smart-Bus Relay 12ch 10Amp /ch,

DIN-Rail Mount (G4) - SB-RLY12C10A-DN

with scene controller. Mannual Programming Enabled.

(Overload Protection) Good for Lightng Control, 50-60Hz. (Green operated supplied by 24VAC/12mA).

Cascadable, Upgradable Via USB Cable. 2-Way status update if manually overidden at Relay side.

((Built in: Added Motor control Double trow Function and Floor heating

manual pairing Function))

8R Smart-Bus Relay 8ch 16Amp /ch,

DIN-Rail Mount (G4) - SB-RLY8c16A-DN

with scene controller. Mannual Programming Enabled.

(Overload Protection) Good for Any AC and DC Power Types, 50-60Hz. (Green operated supplied by 24VAC/12mA). Cascadable, Upgradable Via USB Cable. 2-Way status update if manually overidden at Relay side.

(Can be Used as motor Switch over / Double Throw).

Can Be used for Pass Through AC/DC/Multi Current Types and 3 Phase. ((Built in: Added Motor control Double trow Function and Floor heating manual pairing Function))

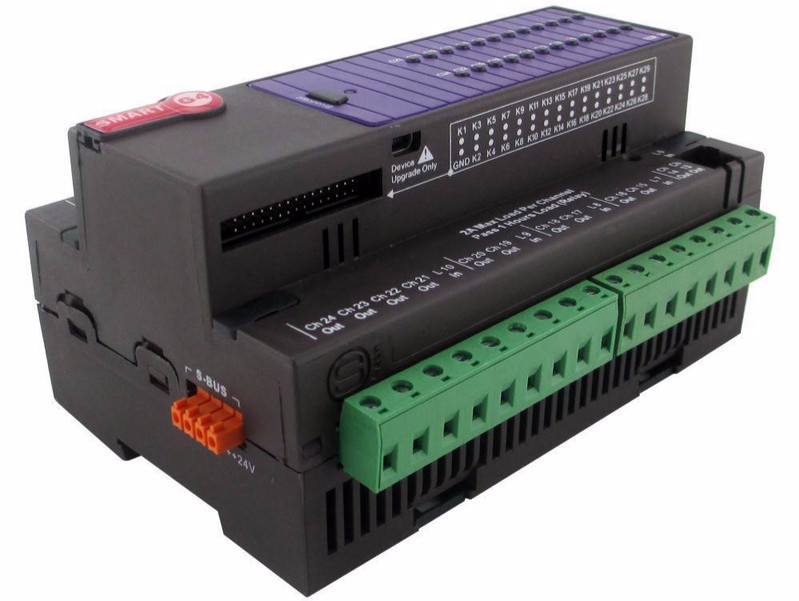

DIN-Rail Mount S-BUS enabled, works as Stand alone and network enabled, Total 48 Ports I/O
24Ch Relays Each is 2A, and 24 Channel Dry contacts Inputs. Supports Scene, Sequence, Que.

Can Create Schenes by Simple NO/NC. (Warning Higher AC Loads Require Adding of Contactors

for Protection per channel Load. Note: Must Organize Sections Groups).

2R Mini Relay Module 5A (G4) -SB-2R-UN

Bus Enabled, 2channel Relay module 2 Amp per channel for Automation Security Siren, Electric Lock, Curtain motor, trigger of gate/Garage Motor, Lighting control, ... etc.

(Built in Intelligence and delay and double throw Function) - Small size can fit behind switch. With Broadcast Enabled, Ready with Firmware USB Upgrade

(Warning: Higher Loads Require Adding of Contactors for Protection per channel Load)

3R Low Current Relay Module G4 - SB-3R-UN

Bus Enabled, 3channel Relay module 0.5Amp per channel for LC

(Low Current only) Automation Security Siren, Electric Lock, Curtain motor, trigger of gate/Garage Motor, Lighting simple low load 0.5A/channel control, ... etc.

Small size can fit behind switch. With Broadcast Enabled, Ready with Firmware USB Upgrade (Warning: Higher Loads Require Adding of Contactors for Protection per channel Load)
